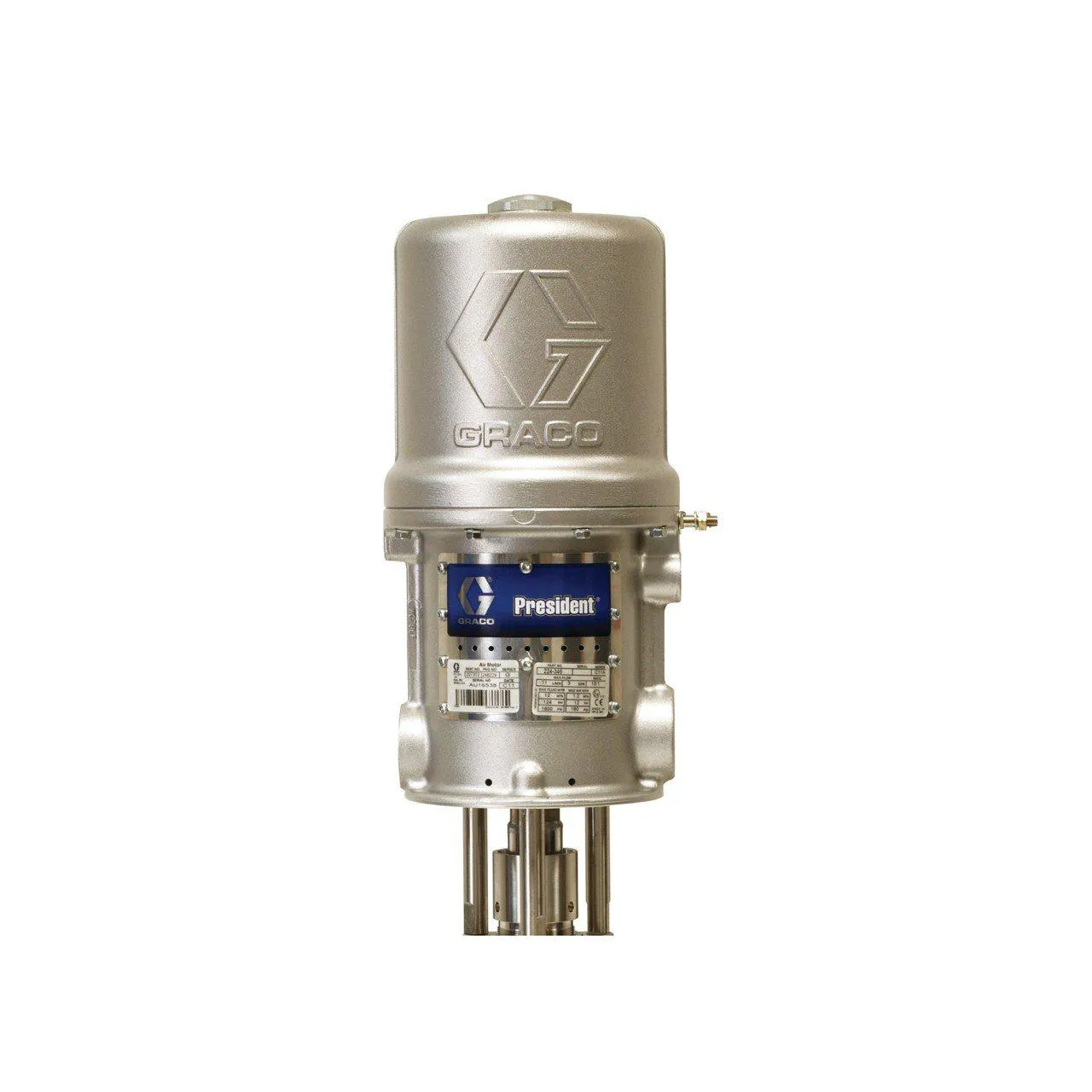

- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Carbon Steel |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 2.5 |
| Maximum Working Pressure (psi) | 360 |
| Portable | Non-Portable |
| Pump Ratio | 3:1 |
| Seal Material | Leather, PTFE |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Carbon Steel |
